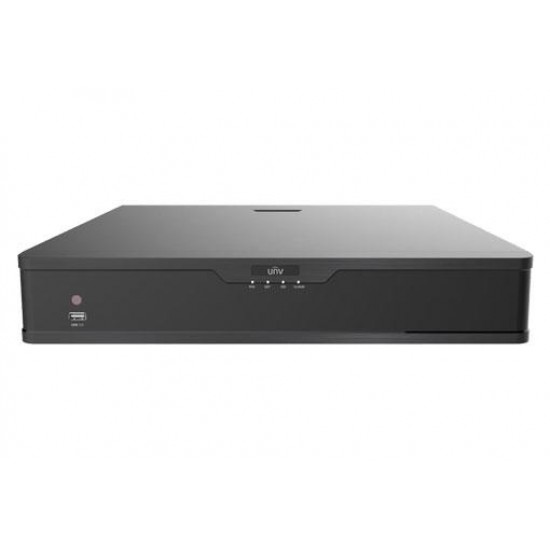

Uniview NVR304-16S-P16 16 καναλιών PoE 12MP/4K, H.265/Ultra265/ U-Code

Uniview NVR304-16S-P16 16 καναλιών PoE 12MP/4K, H.265/Ultra265/ U-Code Model NVR304-16S-P16 NVR304-32S-P16 Video/Audio Input IP Video Input 16-ch 32-ch Two-way Audio Input 1-ch, RCA Network Incoming Bandwidth 160Mbps Outgoing Bandwidth 64Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Audio Compression G.711A, G.711U Synchronous Playback 16-ch 32-ch Liveview display 1/4/6/8/9/16 1/4/6/8/9/16/25/36 Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Decoding Decoding format Ultra 265/H.265/H.264 Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 Hard Disk SATA 4 SATA interfaces Capacity Up to 10TB for each disk Smart VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking VCA Search Behavior Search People counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP) by Camera 8-ch General Alarm General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 RS232 NA RS485 1 Alarm In 16-ch Alarm Out 4-ch PoE Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single port Max 150W in total Supported Standard IEEE 802.3af/at General Power Supply 100 ~ 240 V AC Power Consumption: 15W(without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity 90% RH (non-condensing) Dimensions (WΧDΧH) 400mm Χ362mm Χ 74mm (15.7" Χ 14.2" Χ2.9") Weight (without HDD) 5kg (11.02lb) Certification Certification CE, FCC, UL, RoHS, WEEE CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC Part15 Subpart B, ANSI C63.4
